Yangdong diesel engines for genset

YD380D, YD385D, YD480D, YND485D, YSD490D, Y490D, Y495D, Y4100D, Y4102D, Y4105D, Y4102ZLD, Y4105ZLD, YD4EZLD, Y4110ZLD, these Yangdong diesel engines are applied on genset

Yangdong diesel engines for genset can be divided into 2 kinds. 50HZ 1500rpm Yangdong diesel engines & 60HZ 1800rpm Yangdong diesel engines

  • Description
  • Inquiry
  • Attachment

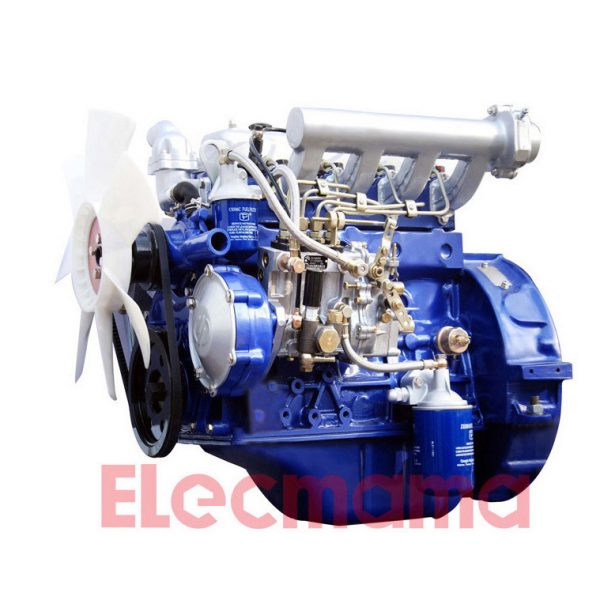

Yangdong diesel engine for genset

We professionally export Yangdong diesel engines for our customers all over the world. We know you are needing to buy a Yangdong diesel engine applied on generator set for electricity generation. So, please send your enquiriy to sales@elecmama.com, we will contact you within 24 hours.

~~ Main introductions about Yangdong Engine Co., Ltd. ~~

Yangdong.Co., Ltd is the largest production base that manufactures small bore and multi cylinders diesel engines. It is a national high-tech enterprise. The production has such excellence as following: the variety is satisfied, the performance is outstanding and the emission capability is well. Also, the production has been certificated by the ISO9001 and TS16949 quality system. There are over 2,330 workers in Yangdong Company at present, among which, the number of professional technical staff is about 340 and the number of the advanced title engineers is 50. The research center of small bore and multi cylinders diesel engines has been founded with self-designing and self-developing capability. In recent years, our company has developed more than 10 new types of diesel engines that are in demand. At present, we have 14 series, including bore of 75, 80, 85, 90, 100, 102, 105 and 108 (mm), and more than 500 types of multi cylinders diesel engines. All of them are the idea power for light cars, farming vehicles, combined croppers, engineering machines, generator sets and water pumps. For being compliant with the requirement of the environment protection, the technology of pressure-gained with normal cold temperature applied to the small-power diesel engines is popularized in force to make the emission index measure up the EuroⅡand Euro Ⅲ Emission Control Regulations. Nowadays some of our production has passed the certification of EPA in U.S.

~~ Main Features about Chinese Yangdong diesel engines ~~

Yangdong series engine for electricity generation
Main features:
1). product scope: contains 80, 85, 90, 100, 102, (5 categories) total 25 kinds of basic models to been chose.
2). application: less than or equal to 50KW diesel generator set
3). advanced technology : YITUO Group and several world-renowned researching institutions join together to design Yangdong diesel engines, absorbed in advanced technology at home and abroad. Using CAD/UG 3D technology and CAE analysis technology, Yangdong diesel engines adopt new stiffness designs for the main parts of the engine body, cylinder head etc. By the perfect combination of world-class airway simulation technology and top combustion theory, Yangdong diesel engines improve helical air inlet, using direct injection combustion chamber, assembled with famous brand turbocharger. Besides, Yangdong diesel engines can reduce fuel consumption; improve emission, easy to be started at low temperature. The series diesel engines have characteristics of small volume, light weight, good reliability, advanced performance index etc.
4). Fuel: low fuel consumption rate, low oil consumption rate, low rate of speed stability, When bench testing, fuel consumption ratio is less than 0.2%, at the advanced level in the industry of small diesel engine.
5). Comfort: small vibration, low noise
6). reliable: improved cooling system of engine, reduce the thermal load, through 720 hours of intensive experiment and 2000 hours endurance testing, detachable cylinder, easy maintenance.
7). Environmental protection: to meet the emission requirements of non-road use diesel engine, some Yangdong diesel engines reach emission standards of many countries, such as the United States EPA, the European Union E-Mark, India CPCB etc.
8). Certification: YD385ZLD, YD480ZLD, YND485ZLD, YSD490ZLD has already been certified by EPA (IV).

~~ Technical parameters about Chinese Yangdong diesel engines ~~

  • engine type : vertical, water cooling, four stroke
  • combustion chamber type : direct injector
  • compression ratio : 18
  • cooling method : forced watercooling
  • starting method : electric starting by battery
50HZ@1500rpm, 60HZ@1800rpm Chinese Yangdong diesel engines For Electricity Generation made in China
Diesel Engine Model Rated Output (KW) Cylinder No. Bore Stroke Fuel Consumption Displace

ment

Air Intake Way Firing order Flywheel Size Bell housing size
mm
YD380D 10/1500rpm

12/1800rpm

3 80 90 260 g/kw.h 1.357 L natural aspirated 1-3-2 SAE 7.5″ SAE 4#
YD385D 11/1500rpm

13/1800rpm

3 85 90 255 g/kw.h 1.532 L natural aspirated 1-3-2 SAE 7.5″ SAE 4#
YD480D 14/1500rpm

16/1800rpm

4 80 90 250.5 g/kw.h 1.809 L natural aspirated 1-3-2 SAE 7.5″ SAE 4#
YND485D 17/1500rpm

20/1800rpm

4 85 95 247 g/kw.h 2.156 L natural aspirated 1-3-4-2 SAE 7.5″ SAE 4#
YSD490D 21/1500rpm

25/1800rpm

4 90 100 247.5 g/kw.h 2.54 L natural aspirated 1-3-4-2 SAE 7.5″ SAE 4#
Y490D 24/1500rpm

28/1800rpm

4 90 105 247.5 g/kw.h 2.67 L natural aspirated 1-3-4-2 SAE 7.5″ SAE 4#
Y495D 26/1500rpm

29/1800rpm

4 95 105 242 g/kw.h 2.977 L natural aspirated 1-3-4-2 SAE 7.5″ SAE 4#
Y4100D 30/1500rpm

36/1800rpm

4 100 118 237 g/kw.h 3.707 L natural aspirated 1-3-4-2 SAE 10″ or SAE 11.5″ SAE 3#
Y4102D 33/1500rpm

39/1800rpm

4 102 118 235 g/kw.h 3.857 L natural aspirated 1-3-4-2 SAE 10″ or SAE 11.5″ SAE 3#
Y4105D 38/1500rpm

45/1800rpm

4 105 118 232 g/kw.h 4.1 L natural aspirated 1-3-4-2 SAE 10″ or SAE 11.5″ SAE 3#
Y4108D 42/1500rpm

49/1800rpm

4 108 118 230 g/kw.h 4.324 L Turbocharged with intercooler 1-3-4-2 SAE 10″ or SAE 11.5″ SAE 3#
Y4102ZLD 48/1500rpm

53/1800rpm

4 102 118 225 g/kw.h 3.857 L Turbocharged with intercooler 1-3-4-2 SAE 10″ or SAE 11.5″ SAE 3#
Y4105ZLD 55/1500rpm

60/1800rpm

4 105 118 220 g/kw.h 4.1 L Turbocharged with intercooler 1-3-4-2 SAE 10″ or SAE 11.5″ SAE 3#
YD4EZLD 63/1500rpm

70/1800rpm

4 105 118 218 g/kw.h 4.1 L Turbocharged with intercooler 1-3-4-2 SAE 10″ or SAE 11.5″ SAE 3#

~~ Overall dimensions about Chinese Yangdong diesel engines ~~

Diesel Engine Model Net Mass Overall Dimensions (mm)
Length Width Height
Yangdong diesel engine YD380D 165 587 474 628
Yangdong diesel engine YD385D 175 587 474 615
Yangdong diesel engine YD480D 195 687 494 610
Yangdong diesel engine YND485D 200 820 590 638
Yangdong diesel engine YSD490D 230 716 530 670
Yangdong diesel engine Y490D 240 716 530 670
Yangdong diesel engine Y495D 240 716 530 670
Yangdong diesel engine Y4100D 300 892 618 718
Yangdong diesel engine Y4102D 320 892 618 740
Yangdong diesel engine Y4105D 330 892 618 740
Yangdong diesel engine Y4108D 330 892 618 740
Yangdong diesel engine Y4102ZLD 340 892 618 740
Yangdong diesel engine Y4105ZLD 350 892 618 740
Yangdong diesel engine YD4EZLD 350 892 618 740

40℃ radiator matachable for Yangdong diesel engine is standard configuration. When buying Chinese Yangdong diesel engine, most of our customers will often buy a 50℃ radiator matachable for their Yangdong diesel engine. Moreover, this 50℃ radiator (water tank) is made of 100% copper wires, not aluminum materials. We will ship Yangdong diesel engine with schematic diagram of wiring dimensions for installing Yangdong diesel engine in a right way by then.

Frequently Asked Questions:

Question Answer
What’s our MOQ? MOQ is one set only.
What’s our warranty time? One year or 12 months, started from B/L on-board day, whichever comes firstly.
What’s our production time? Within 7-10 days started from the deposit date
What’s our pack materials? Plastic membrance inside, standard export plywood case outside
What’s our port of loading? Shanghai port or Fuzhou port in China
What’s our price terms ? FCA, FOB, C&I or CIF USD
What’s our default payment terms? 30% deposit bank TT before production, the balance 70% to be paid by bank TT before shipment, as default payment. Other payment is negotiable for the customers.
