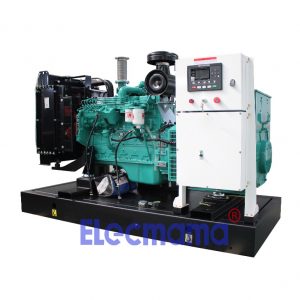

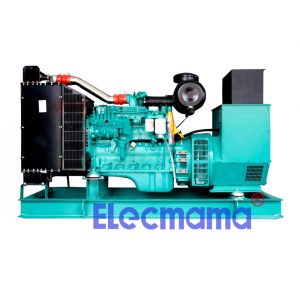

Cummins diesel generators
three phase Cummins diesel generators for power generation
Application : commerical premises (commercial Infrastructure), farm, mining, factory, construction building, public works for utilities, outdoor event, hospital, military, telecommunications and data centre etc.
Genset frequency : 50HZ & 60HZ
Phase number : 3 Phase
Default voltage : 400/230V for 50HZ, 440/254V for 60HZ, other voltage can be available for our customers all over the world
Power output : 16kw to 1200kw
Power factor : 0.8 lagging
Country of origina : China
Quality certificate : ISO9001 : 2008, ISO14001 & CE
Guarantee period : 12 months started from on-board day of B/L
Production time : 25-30 days after we receive customer’s payment
Minimum Order Quantity (MOQ)Â :Â 1 set
- Description
Cummins diesel generators
We export & distribute Cummins diesel generators, Cummins diesel engines, generators (alternators), spare parts of Cummins diesel gensets, spare parts of Cummins diesel engines, spare parts of generators (alternators) for our dear customers all over the world. Our Cummins diesel gensets are often coupled to genuine Stamford generators or our own brand “Elecmama” generators. If the buyers need other famous brands of generators, such as Marathon, Leroy Somer, Mecc Alte, etc. our company still can supply them for our customers.
 CCEC Cummins
Genset Model | 50HZ Diesel Generator | Â 50HZ 1500rpm Water-cooled Cummins Diesel Engine Made In China | Stamford Generator | ||||||||
Standby Power (ESP) | Prime Power (PRP) | Engine Brand | Engine Model | Power Output (KW) | Cylinder No. | Speed Governor | 50HZ 1500rpm 400/230V Brushless Generator | ||||
KVA | KW | KVA | KW | Generator Model | Rated Power | ||||||
YCM200CC | 275 | 220 | 250 | 200 | CCEC | NT855-GA | 231-254 | 6 | Electronic | UCD274K | 200kw |
YCM220CC | 303 | 242 | 275 | 220 | CCEC | NTA855-G1A | 261-291 | 6 | Electronic | HCI444D | 240kw |
YCM250CC | 344 | 275 | 312.5 | 250 | CCEC | NTA855-G1B | 284-321 | 6 | Electronic | HCI444ES | 260kw |
YCM280CC | 385 | 308 | 350 | 280 | CCEC | NTA855-G2A | 310-343 | 6 | Electronic | HCI444E | 280kw |
YCM300CC | 413 | 330 | 375 | 300 | CCEC | NTAA855-G7 | 343-377 | 6 | Electronic | HCI444FS | 304kw |
YCM320CC | 440 | 352 | 400 | 320 | CCEC | NTAA855-G7A | 407 | 6 | Electronic | HCI444F | 320kw |
YCM360CC | 495 | 396 | 450 | 360 | CCEC | KTA19-G3 | 403-448 | 6 | Electronic | HCI544C | 400kw |
YCM400CC | 550 | 440 | 500 | 400 | CCEC | KTA19-G3A | 448-504 | 6 | Electronic | HCI544C | 400kw |
YCM440CC | 605 | 484 | 550 | 440 | CCEC | KTAA19-G5 | 470-555 | 6 | Electronic | HCI544D | 440kw |
YCM480CC | 660 | 528 | 600 | 480 | CCEC | KTA19-G8 | 575 | 6 | Electronic | HCI544E | 488kw |
YCM500CC | 688 | 550 | 625 | 500 | CCEC | KTAA19-G6A | 527-610 | 6 | Electronic | HCI544FS | 500kw |
YCM520CC | 715 | 572 | 650 | 520 | CCEC | QSKTAA19-G3 | 574-634 | 6 | Electronic | HCI544F | 536kw |
YCM600CC | 825 | 660 | 750 | 600 | CCEC | KTA38-G2 | 664-731 | 12 | Electronic | LVI634B | 600kw |
YCM640CC | 880 | 704 | 800 | 640 | CCEC | KTA38-G2B | 711-789 | 12 | Electronic | LVI634C | 640kw |
YCM720CC | 990 | 792 | 900 | 720 | CCEC | KTA38-G2A | 813-895 | 12 | Electronic | LVI634D | 728kw |
YCM800CC | 1100 | 880 | 1000 | 800 | CCEC | KTA38-G5 | 880-970 | 12 | Electronic | LVI634E | 800kw |
YCM900CC | 1238 | 990 | 1125 | 900 | CCEC | KTA38-G9 | 1090 | 12 | Electronic | LVI634F | 904kw |
YCM1000CC | 1375 | 1100 | 1250 | 1000 | CCEC | KTA50-G3 | 1097-1227 | 16 | Electronic | LVI634G | 1000kw |
YCM1100CC | 1513 | 1210 | 1375 | 1100 | CCEC | KTA50-G8 | 1200-1429 | 16 | Electronic | PI734B | 1120kw |
YCM1200CC | 1650 | 1320 | 1500 | 1200 | CCEC | KTA50-GS8 | 1287-1429 | 16 | Electronic | PI734C | 1240kw |
Standard Supply Scope:
1). Genuine Cummins diesel engine with 50℃ radiator made of copper wires, not aluminum materials
2). Genuine Stamford generator or our own brand “Elecmama” brushless generator
Generator Brand | Stamford | Elecmama |
Raw Material | made of 100% copper wires | made of 100% copper wires |
Excitation Method | brushless, self-excited | brushless, self-excited |
Insulation Class | H class | H class |
Ambient Temperature | 40℃ | 40℃ |
Enclosure | Ingress Protection IP 23 | Ingress Protection IP 23 |
Stator Winding | 311 | 311 |
Stator Connection | SERIES STAR | SERIES STAR |
Voltage Control Way | automatic voltage regulator (AVR) | automatic voltage regulator (AVR) |
AVR Model | AS440 or AS480 | SX440 or SX460 |
Generator Speed | 1500 rpm or 1800 rpm | 1500 rpm or 1800 rpm |
Generator Frequency | 50 HZ or 60 HZ | 50 HZ or 60 HZ |
Generator Manufacturer | Cummins Generator Technologies (China) Co., Ltd. | Our Authorized Factory |
Genuine Stamford generator nameplate
3). Auto-Start controlling module, Chinese Smartgen brand, model is HGM 6120U as default
4). Chinese TENGEN, Chinese CHINT or Chinese DELIXI Moulded Case Circuit Breaker (MCCB)
5). base frame fuel tank for 8 working hours made of high quality steel plates
6). battery for electric start, copper lines for connecting batteries, battery charger, battery isolator
7). heavy duty steel-structure base frame
8). vibration insulators between Cummins diesel engine, generator & common base frame
9). manual hand oil drain pump for Cummins diesel generator set
10). standard accessories & tool kit from Dongfeng Cummins Engine Co., Ltd or Chongqing Cummins Engine Co., Ltd.
11). operation manuals of diesel engine, generator, genset, genset’s controlling module
12). Cummins diesel engine is fitted with an extension pipe to drain the oil.

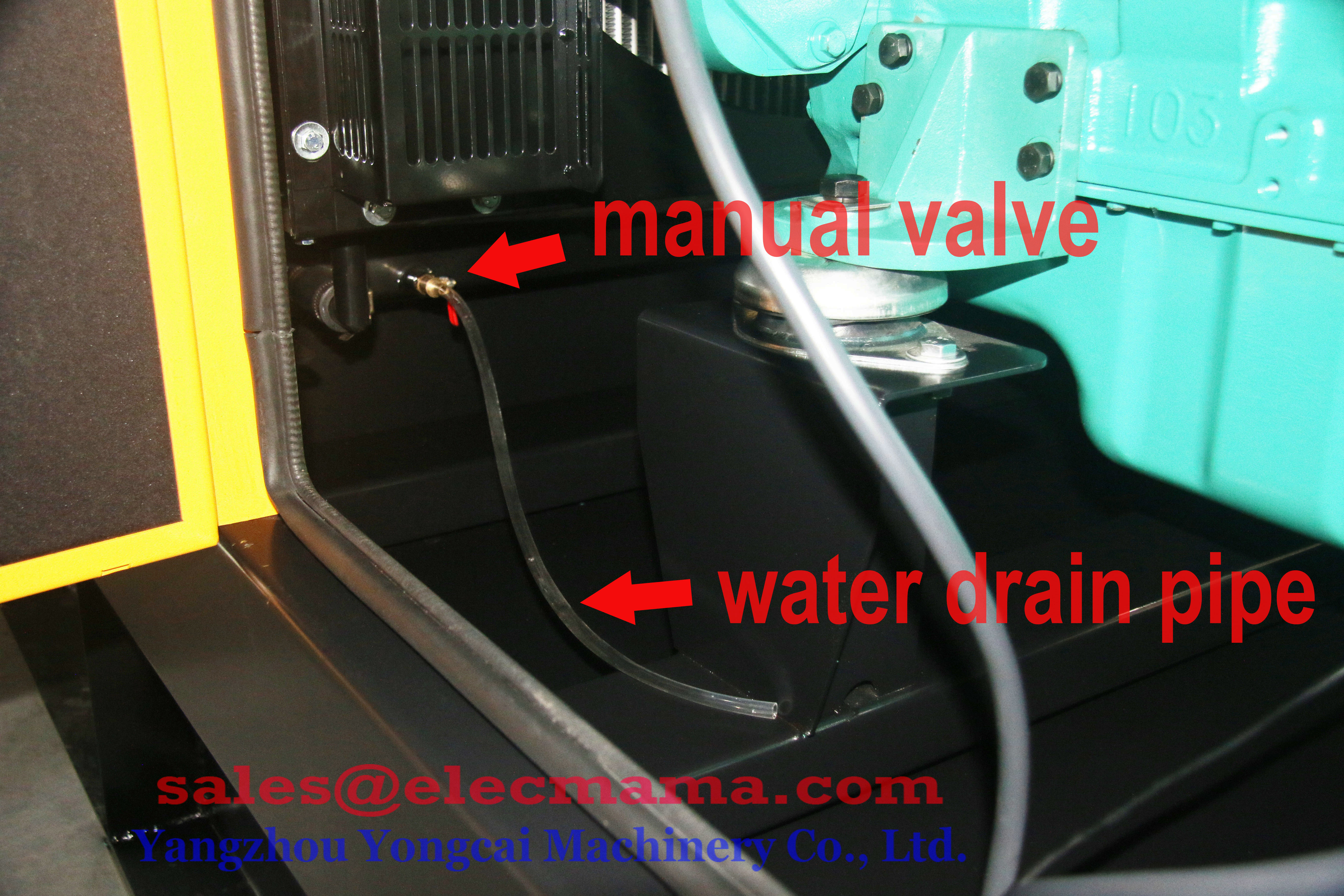

13). The water drain pipe and corresponding valve is fitted to the radiator for draining the water.
14). forklift pockets for open type diesel generator set, our forklift pockets still can be customerized.
Optional Supply Scope:
1). open type diesel generator doesn’t have soundproof canopy. If customers need silent diesel generator sets, they buyers should pay extra costs on soundproof canopy
When the prime power of Cummins genset is equal or greater than 600kw, such kind of silent diesel genertor should be containerized silent diesel generator. 20GP or 40GP for choice
2). controlling module for genset, our default is Chinese Mainland Smartgen brand, HGM 6120U. Other famous brands such as UK Deepsea, Czech ComAp, Chinese Hongkong Harsen, Denmark DEIF, Turkey Datakom is optional.
3). ATS (automatic voltage regulator) cabinet is optional. We adopt Chinese “Aisikai” brand, SKT1 series Auto Transfer Switch for ATS cabinet
4). 12 hours operation diesel fuel tank made of high quality steel plates

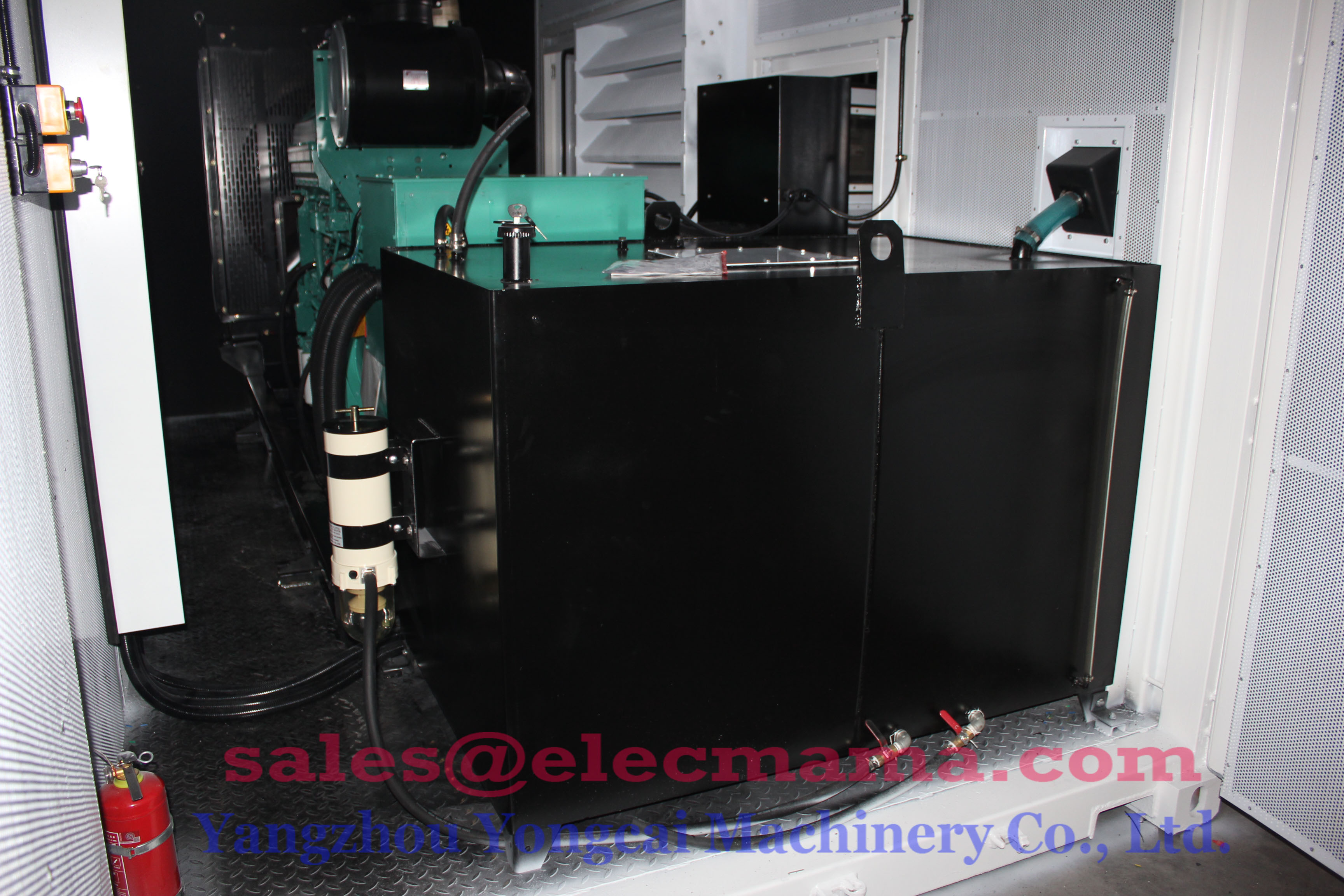

5). external diesel fuel tank, fuel tank capacity can be 1000L, 1500L, 2000L, 3000L
6). Swiss ABB Moulded Case Circuit Breaker (MCCB)
7). residule current device (RCD)
8). auto-pump for draining oil
9). 60℃ copper radiator, suitable for tropical areas and deserts etc.
10). separator of diesel fuel and water

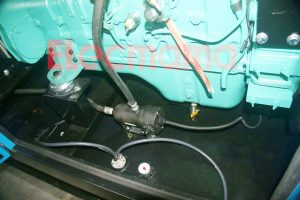

11). water jacket heater (engine heater), lubricatig oil heater, diesel fuel heater
12). intelligent control systems, such as synchronization system, remote control, grid-connected etc.
13). single phase Cummins diesel generator set
14). trailer mounted Cummins diesel generator, 2 wheels trainer or 4 wheels trailer for choice
15). rainproof canopy for Cummins diesel generator set

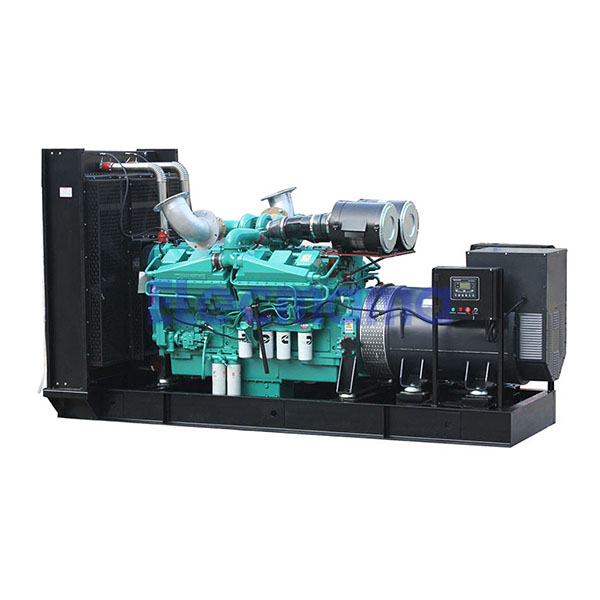

Cummins diesel generator sets

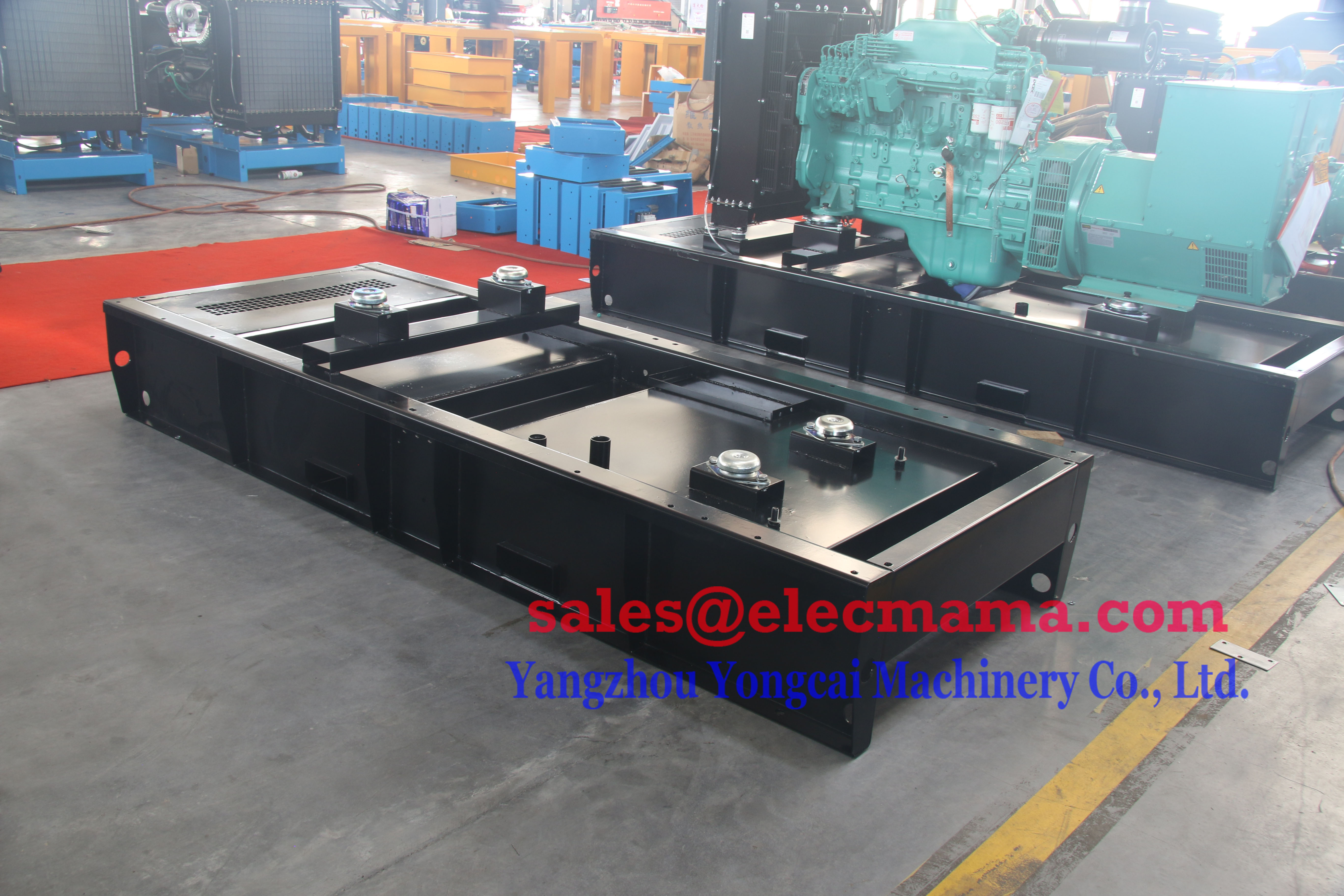

Generator Fuel Tank, Base Mounted Fuel Tanks for Industrial Generators, generator sub-base fuel tank
