FAW 4DW81-23D Diesel Engine For Genset

Chinese Fawde (Yiqi Xichai) diesel engine for electricity generation

Diesel engine model : 4DW81-23D

Power output : 17kw to 19kw

Frequency : 50Hz

Diesel engine speed : 1500rpm

Production time : 18-20 days after payment

Manufacturer : FAW Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works

Minimum Order Quantity (MOQ) : 1 set

Country of origin : China

Categories: FAW diesel engine

Description

4DW81-23D FAW diesel engine for electricity generation

Yangzhou Yongcai Machinery Co., Ltd. is good at exporting FAW diesel engines, FAW diesel generators and spare parts of FAW diesel engine. We are a service-oriented company, focuses on improving value-added services at a good price for our customers. As a supplier who have already dealed with customers from more than 50 countries, we expect a business cooperation with you all along. The important thing is that currently you want to buy a genuine FAW 4DW81-23D diesel engine from China. We are here just for you.

Your FAW 4DW81-23D diesel engine is broken. Our company can supply this 4DW81-23D FAW diesel engine for you. genuine FAW diesel engine, genuine FAW diesel engine, genuine FAW diesel engine, the important thing has been said three times. To verify our professionalism firstly, please let us introduce the detailed technical specifications of FAW diesel engine for you in the following contents.

FAWDE 4DW81-23D Diesel Engine applied for Power Generation made in China

FAWDE DIESEL ENGINES FOR GENSET — 4DW Series diesel engines

Main Technical Specifications for Fawde 4DW81-23D diesel engine for Genset (4DW Series) :

Engine model	4DW81-23D	4DW91-29D	4DW92-35D	4DW93-42D
Type	4-cylinder 4-stroke
Air intake type	Natural	Natural	Turbocharged	Turbo & intercool
Cooling mode	Water cooling
Governor mode	Mechanical and electronic
Bore × Stroke(mm）	85×100	90×100
Compression ratio	17:01
Rated speed(rpm)	1500
Displacement(L)	2.27	2.54
Rated power (without fan)(kW)	17	21	26	31
Standby power (without fan)(kW)	19	23	29	34
Fuel consumption(g/kWh)	240	240	230	216
Oil consumption(L/h)	0.05	0.05	0.04	0.04
Steady state speed regulation(%)	≤5	≤5	≤5	≤5
Oil capacity including filter(L)	7.8	8	8	8
Emission compliant	StageⅡ
The flywheel shell interface	SAE4
The flywheel shell interface	Flywheel for 7.5″ & 10″ flexible coupling
Dry weight of base(kg)	220	220	240	240
Dry weight of Gen Pac(kg)	240	240	260	280
Overall dimension(base)(mm)	750×555×680	750×555×680	750×600×735
Overall dimension(G.P)(mm)	920×610×760		1120×810×760
Fan consumption（kW）	1.2	1.6	1.8	2
27℃ air consumption（m3/min）	1.4	1.7	2.1	2.4
Heat rejection of exhaust（kW）	17.2	17.4	20.6	23.1
Exhaust gas temperature after turbine（℃）	550	450	450	450
Exhaust gas flow（m3/min）	4.2	4.6	5.9	6.7
Heat rejection from engine（kW）	1.1	1.3	1.6	1.9
Heat rejection of coolant（kW）	11	13.7	16.9	17.1
Base configuration	Standard configuration (add on the base)
Engine with fan	Intake and exhaust sysytem：Air filter and connecting pipes;Connecting flang of exhaust pipe
Alternator 500W 14V	Cooling system：Radiator with connecting pipes, Fan guard, Belt guard
Starter motor 3.5kW 12V

FAWDE 4DW81-23D diesel engine nameplate

FAW Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works in China

Located in Wuxi, Jiangsu Province, FAW Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works (hereinafter referred to as ” FAWDE “) is an exclusively-invested enterprise subordinated to China FAW Group Corporation. Established in 1943, and after seven decades of development, the factory now covers an area of 670,000 square meters, with over 3,500 employees, total assets of RMB6.35 billion, and brand intangible assets of RMB10.229 billion. Presently, it possesses four plant areas, including two large engine bases, one engine remanufacturing base, and one modified vehicle research base, and has formed a production system with world-leading equipment, domestic leading management and industry leading quality, with an annual production capacity of 600,000 diesel engines and 15,000 modified vehicles.

FAWDE has domestic leading independent research and development capacity. Relying on the advantage of the technology center of FAW, it has formed an independent research and development mode of open cooperation, built “five independent R&D systems” including the product development process and standard system, and the product development process management system, and set up “five independent R&D technology platforms” involving energy-saving and environmental protection technology, and e-intelligence technology, which is the only enterprise that has various core technologies such as VCU, GPS, EGR, and engine braking in the diesel engine industry, as well as the first enterprise that has successfully developed the four-valve diesel engine and electronic-controlled common-rail diesel engine, and successfully developed and promoted the two-stage supercharged diesel engine in China.

Spare Parts for FAW Diesel Engine 4DW81-23D

After you buy FAW 4DW81-23D diesel engine from our company, sooner or later you will replace spare parts for engine maintenance someday in the future. Here we can tell you main spare parts. You can get an idea of these engine parts firstly.

air filter, fuel filter, oil filter, water pump, water pump bypass hose, engine alternator, electric starter motor for engine, engine belt for radiator (water tank), cooling fan blade, radiator, radiator cap, cylinder head, cylinder head gasket, cylinder head cover, engine overhaul gaskets kit, lube oil pump, oil pump drive gear with shaft, oil pan, oil sump gasket, fuel injector, fuel nozzle, fuel injection pump, fuel feed pump, piston, piston rings, piston pin, piston pin circlips (snap rings), cylinder liner (cylinder sleeve), connecting rod, connecting rod bearings, crankshaft, crankshaft main bearings, crankshaft front oil seal, crankshaft rear oil seal, crankshaft thrust washer, oil pressure sensor, water temperature sensor, engine speed sensor, camshaft, camshaft seals, camshaft bearings bush, intake valves, exhaust valves, intake valve guild, exhaust valve guide, intake valve seat, exhaust valve seat, valve spring, valve rocker arm assembly, valve oil seal, valve cover gasket, push rod, bucket tappet, thermostat, thermostat housing, thermostat housing gasket, thermostat cover, thermostat cover gasket, engine stop solenoid valve, turbocharger for turbocharged engine, flywheel, flywheel housing, crankshaft pulley wheel, oil seal of crankshaft pulley wheel etc.

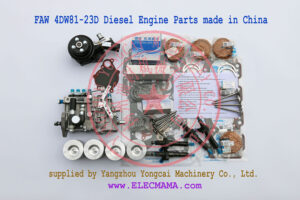

FAW 4DW81-23D Diesel Engine Parts

Contact us to buy FAW Diesel Engine 4DW81-23D

The production time for FAW diesel engines is 18-20 days. The port of loading is Shanghai port in China.

FAW 4DW81-23D engine procurement is a long-term investment. You can count on us to protect your investment.

Quality, value and professional advice are the cornerstones of our business. Here, we kindly invite you to have a pleasant procurement experience and join into our family of the satisfied customers.

Please feel free to contact us, send your enquiry to [email protected] or directly add Whatsapp +86 189-3624-2835 for a faster reply. We will sacrifice all of our industrial experiece for your electric power demand. Thank you very much.
