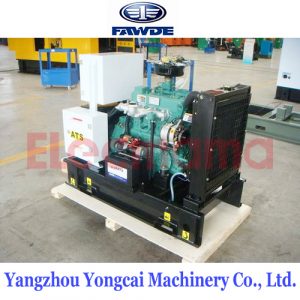

FAW diesel generators
three phase FAW diesel generators for power generation
Application : commerical premises (commercial Infrastructure), farm, mining, factory, construction building, public works for utilities, outdoor event, hospital, military, telecommunications and data centre etc.
Genset frequency : 50HZ & 60HZ
Phase number : 3 Phase
Default voltage : 400/230V for 50HZ, 440/254V for 60HZ, other voltage can be available for our customers all over the world
Power output : 12kw to 300kw
Power factor : 0.8 lagging
Country of origina : China
Quality certificate : ISO9001 : 2008, ISO14001 & CE
Guarantee period : 12 months started from on-board day of B/L
Production time : 25-30 days after we receive customer’s payment
Minimum Order Quantity (MOQ) : 1 set
- Description
FAW diesel generator is a good power generating equipment with strong and stable power output, worth you have. But how to buy it from a reliable and professional supplier in China? All answers are here for you.
Yangzhou Yongcai Machinery Co., Ltd. acts as sourcing agent for overseas clients seeking to buy Chinese products, specialize in exporting diesel generator, diesel engine, generator, spare parts of diesel genset, spare parts of diesel engine, spare parts of generator and other Chinese machinery with rich experience and good service. We are a service-oriented company, focus on improving value-added services at a good price for our customers. As a supplier who have already cooperated with customers from more than 100 countries, we expect a business cooperation with you all along. The important thing is that currently you want to buy a genuine FAW diesel generator from China. We are here just for you.
FAW diesel generator is one of our advantageous products in our business scope. Our industrial FAW diesel gensets are often coupled to our own brand “Elecmama” brushless synchronous generators. Such a combination emphasizes high quality yet value for money. If you need the higher quality generators, such as Stamford, Marathon, Leroy Somer, Mecc Alte, etc. our company still can supply them for you. No misgivings : We have CE certificate as a proof of quality with 12 months warranty period for FAW diesel generators. To verify our professionalism firstly, please let us introduce the detailed technical specifications of 12kw 15kva FAW diesel generator for you in the following contents.
FAW Jiefang Automotive Co Ltd Wuxi Diesel Engine Works as established in 1943. Main products have now formed seven series diesel engines. Its production capacity is over 600,000 diesel engines per year. Diesel engine displacement ranges from 2L to 13L, power ranges from 46 Hp ~ 500Hp, emission is met with Euro Ⅳ and Euro Ⅴ standard, is the factory of the biggest displacement and power ranges, the most comprehensive technical lines in diesel engine industry.
Genset Model | 50HZ Diesel Generator | 50HZ 1500rpm Water-cooled FAW Diesel Engine Made In China | Brushless Generator | ||||||||
Standby Power (ESP) | Prime Power (PRP) | Engine Brand | Engine Model | Power Output (KW) | Cylinder No. | Fuel Consumption At Full Load | 50HZ 1500rpm 400/230V Brushless Generator | ||||
KVA | KW | KVA | KW | Generator Model | Rated Power | ||||||

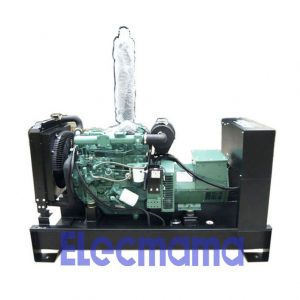

YCM12FA | 17 | 13 | 15 | 12 | FAW | 4DW81-23D | 17-19 | 4 | 240 g/kw.h | Elecmama-164D | 12.8kw |

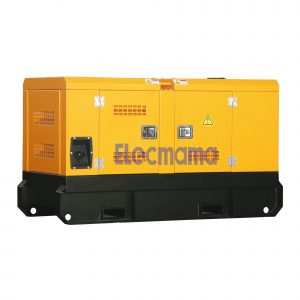

YCM16FA | 22 | 18 | 20 | 16 | FAW | 4DW91-29D | 21-23 | 4 | 240 g/kw.h | Elecmama-184E | 18kw |
YCM20FA | 28 | 22 | 25 | 20 | FAW | 4DW92-35D | 26-29 | 4 | 230 g/kw.h | Elecmama-184F | 22kw |

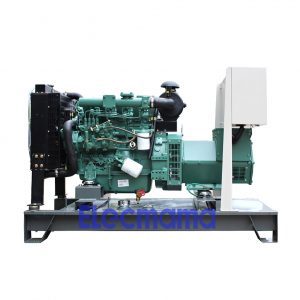

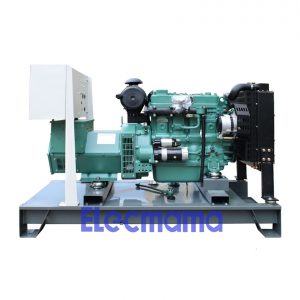

YCM24FA | 33 | 26 | 30 | 24 | FAW | 4DW92-39D-HMS20W | 29-32 | 4 | 230 g/kw.h | Elecmama-184G | 25kw |
YCM24FA | 33 | 26 | 30 | 24 | FAW | 4DW93-42D | 31-34 | 4 | 216 g/kw.h | Elecmama-184G | 25kw |
YCM24FA | 33 | 26 | 30 | 24 | FAW | 4DX21-45D | 33-36 | 4 | 230 g/kw.h | Elecmama-184G | 25kw |
YCM30FA | 41 | 33 | 38 | 30 | FAW | 4DX21-53D-HMS20W | 39-43 | 4 | 230 g/kw.h | Elecmama-184H | 30kw |
YCM30FA | 41 | 33 | 38 | 30 | FAW | 4DX22-50D | 37-41 | 4 | 220 g/kw.h | Elecmama-184H | 30kw |
YCM40FA | 55 | 44 | 50 | 40 | FAW | 4DX22-65D-HMS20W | 48-53 | 4 | 220 g/kw.h | Elecmama-224D | 40kw |
YCM40FA | 55 | 44 | 50 | 40 | FAW | 4DX23-65D | 48-53 | 4 | 215 g/kw.h | Elecmama-224D | 40kw |
YCM50FA | 69 | 55 | 63 | 50 | FAW | 4DX23-78D-HMS20W | 57-63 | 4 | 215 g/kw.h | Elecmama-224E | 48kw |
YCM50FA | 69 | 55 | 63 | 50 | FAW | 4100/125Z-09D | 65-72 | 4 | 215 g/kw.h | Elecmama-224E | 48kw |

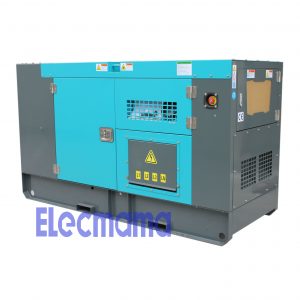

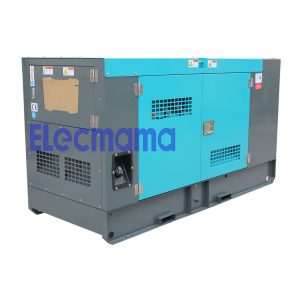

YCM60FA | 83 | 66 | 75 | 60 | FAW | CA4DF2-12D | 84-92 | 4 | 205 g/kw.h | Elecmama-224F | 58kw |

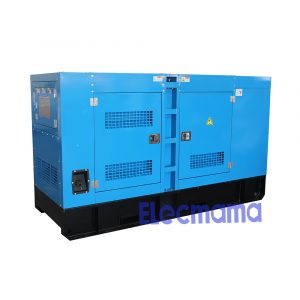

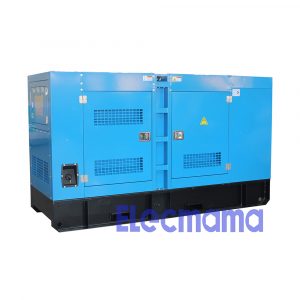

YCM80FA | 110 | 88 | 100 | 80 | FAW | CA6DF2D-14D | 96-105 | 6 | 202 g/kw.h | Elecmama-274C | 80kw |
YCM100FA | 138 | 110 | 125 | 100 | FAW | CA6DF2-17D | 125-138 | 6 | 202 g/kw.h | Elecmama-274D | 96kw |
YCM120FA | 165 | 132 | 150 | 120 | FAW | CA6DF2-19D | 140-154 | 6 | 200 g/kw.h | Elecmama-274F | 128kw |
YCM150FA | 206 | 165 | 188 | 150 | FAW | CA6DL1-24D | 176-194 | 6 | 196 g/kw.h | Elecmama-274G | 145.6kw |
YCM180FA | 248 | 198 | 225 | 180 | FAW | CA6DL2-27D | 205-226 | 6 | 195 g/kw.h | Elecmama-274J | 184kw |
YCM200FA | 275 | 220 | 250 | 200 | FAW | CA6DL2-30 | 227-251 | 6 | 195 g/kw.h | Elecmama-274K | 200kw |
YCM250FA | 344 | 275 | 313 | 250 | FAW | CA6DM2J-39D | 287-316 | 6 | 195 g/kw.h | Elecmama-444ES | 260kw |
YCM250FA | 344 | 275 | 313 | 250 | FAW | CA6DM2-39D | 287-316 | 6 | 189 g/kw.h | Elecmama-444ES | 260kw |
YCM270FA | 371 | 297 | 338 | 270 | FAW | CA6DM2J-41D | 300-330 | 6 | 195 g/kw.h | Elecmama-444E | 280kw |
YCM270FA | 371 | 297 | 338 | 270 | FAW | CA6DM2-41D | 300-330 | 6 | 189 g/kw.h | Elecmama-444E | 280kw |
YCM300FA | 413 | 330 | 375 | 300 | FAW | CA6DN1J-45D | 332-365 | 6 | 195 g/kw.h | Elecmama-444FS | 304kw |
YCM300FA | 413 | 330 | 375 | 300 | FAW | CA6DN1-45D | 332-365 | 6 | 191 g/kw.h | Elecmama-444FS | 304kw |
Additional Remarks for 12kw FAW diesel generator
1). Genset Model “YCM12FAMS” — detailed explanations
- YCM = Yangzhou Yongcai Machinery Co., Ltd.
- 12 means the prime power of diesel generator set is 12kw
- FA = FAW series diesel generator set
- E = Speed governor of diesel engine is electronic type, M = Speed governor of diesel engine is mechanical type
- O = open type diesel generator, S = Silent type diesel generator, CS = Containerized Silent type diesel generator
2). Prime Power (PRP) and Standby Power Rating (ESP)
- Prime Power (PRP) : Prime Power is available for an unlimited number of annual operating hours in variable load applications, in accordance with ISO8528-1. A 10% overload capability is available for a period of 1 hour within 12 hours period of operation and in accordance with ISO 3046-1.
- Standby Power Rating (ESP) : The Standby Power Rating is applicable for supplying emergency power in variable load applications for up to 200 hours per year in accordance with ISO8528-1. Overload is not allowed.
- 1kw = 1.25kva
- Standby power of genset = 1.1 x prime power of genset
3). Genset Voltage : 3 phase voltage available for 50hz and 60hz, many voltages available for the customers.
Frequency | 3P Voltage | Line Voltage | Phase Voltage | Remark |
50hz | 380/220V | 380V | 220V | available |
50hz | 400/230V | 400V | 230V | default |
50hz | 415/240V | 415V | 240V | available |
50hz | 440/254V | 440V | 254V | available |
Frequency | 3P Voltage | Line Voltage | Phase Voltage | Remark |
60hz | 220/127V | 220V | 127V | available |
60hz | 380/220V | 380V | 220V | available |
60hz | 416/240V | 416V | 240V | available |
60hz | 440/254V | 440V | 254V | default |
60hz | 460/266V | 460V | 266V | available |
60hz | 480/277V | 480V | 277V | available |
Generally speaking, in our standard supply scope of diesel generator set, we have already well considered many details for the customers. If the buyer need more, please check our optional supply scope to find the items you are interested into. These configurations closely influence the production costs and production complexity etc. So we kindly suggest you to study them one by one before you place your order to our company. If you have other special requirements, please tell us the details in your inquiry.
Standard Supply Scope for 12kw FAW diesel generator
1). 1500 rpm genuine FAW diesel engine with 50℃ radiator made of 100% copper materials without any aluminum materials, specially suitable for tropical areas and desert regions
2). 1500 rpm good ordinary brand “Elecmama” brushless generator or genuine Stamford brushless generator made of 100% copper lines, brushless & self-excited, Insulation Class H class, Ingress Protection IP23, AVR (automatic voltage regulator)
3). Auto-Start controlling module with ATS interface, Chinese Smartgen HGM 6120N or UK Deepsea 6120, module settings of low oil level alarm, at the same time install the necessary oil level sensor, anyway, many protections and alarm settings for genset
4). Chinese famous brand air breaker such as TENGEN, CHINT, Delixi etc. Moulded Case Circuit Breaker (MCCB) with CE certificate
5). Base frame fuel tank for 8 working hours capacity
6). Chinese “Smartgen” brand battery charger, model “BAC06A”, battery isolator, batteries for electric start, copper lines for connecting batteries
7). Heavy duty steel-structure base frame with strong shock absorber pad to reduce the vibration between diesel engine, generator and base frame for genset
8). Industrial high-efficient silencer with exhaust elbow
9). Standard accessories & tool kit from the FAW Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works in China and other necesary spare parts for genset to be shipped with diesel genset for the customer’s maintenance and replacement
10). The diesel engine is fitted with a manual pump and an extension pipe to drain the oil
11). The drain pipe and corresponding value are fitted to the radiator for draining the water
12). Two forklift pockets for each side of generator set, very convenient for transportation
13). Grounding the protection of the essential measures, well done without a potential safety hazard
Except for the above physical items in the standard supply scope, we also supply some necessary files to our customers. Please go to check them as follows. If you lost them, we still have backup files in E-version for remedial measures.
- Manual of FAW diesel engine in English version
- Manual of AC generator (alternator) in English version
- Manual of controlling module for genset in English version
- Manual of operation and maintenance for FAW diesel generator in English version
- Wiring diagram of FAW generator set for the maintenance purposes
Optional Supply Scope for 12kw FAW diesel generator
- FAW diesel engines have mechanical type speed governor and electronic type speed governor. But FAW 4DW81-23D diesel engine for 12kw FAW genset only adopts mechanical type speed governor as the FAW factory standard. If the buyers need electronic type speed governor FAW 4DW81-23D diesel engine, will have to pay the extra cost.

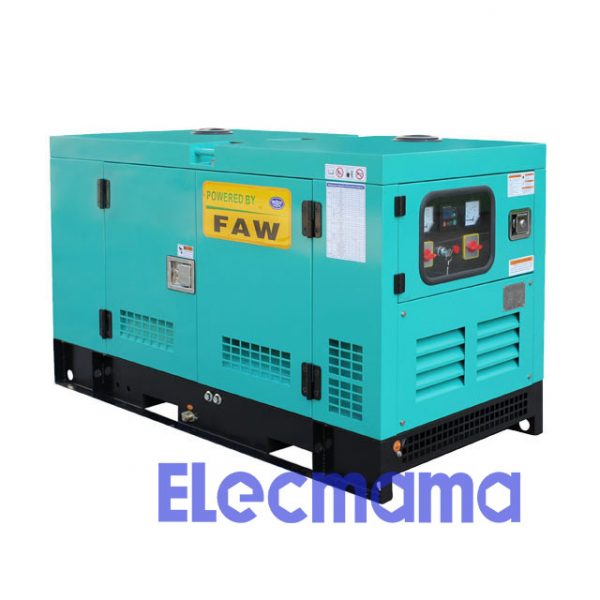

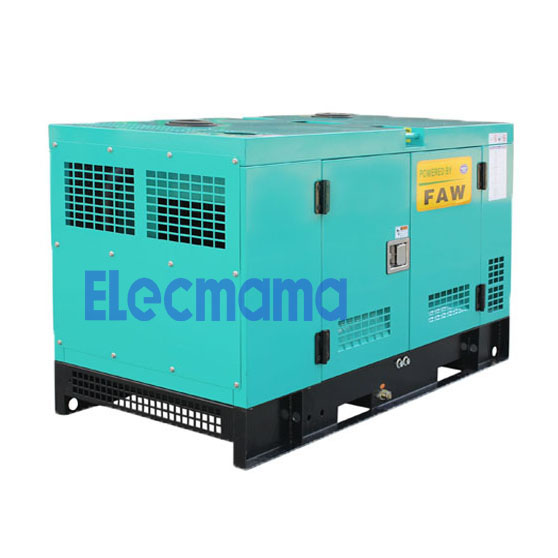

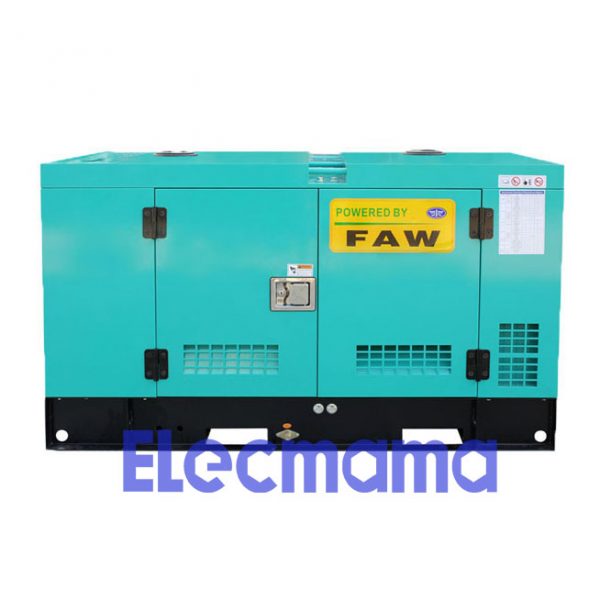

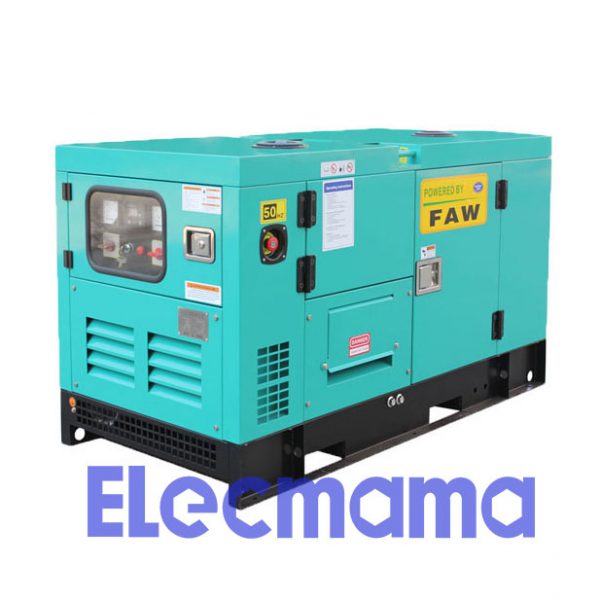

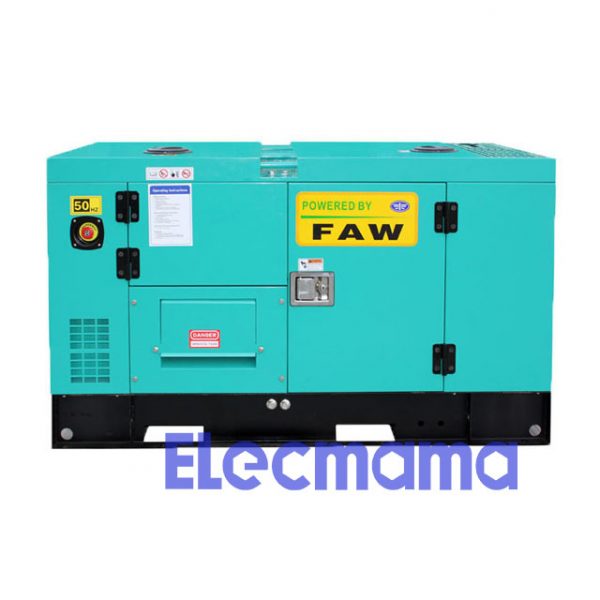

- Soundproof canopy for silent diesel generator set is optional
- Automatic transfer switch (ATS) cabinet separated with genset is optional
- Base frame fuel tank for 12 working hour capacity is optional
- External fuel tank separated with genset is optional, Our fuel tank capacity can be 1000L, 1500L, 2000L, 3000L.
- Water jacket heater installed on the generator set for winter usage is optional
- ABB famous brand Moulded Case Circuit Breaker (MCCB) with CE certificate is optional
- Automatic refueling system is optional, mainly including “automatic fuel controller”, pre-installed automatic refueling pump and other necessary spare parts (sensor of fuel level etc.)
- Standard genset is 3 phase genset, single phase diesel generator set is optional
- single phase sockets are optional, three phase sockets are optional
- Cloud monitoring system, account, configured modem are optional
- residule current device (RCD) is optional
- intelligent control system is optional, such as synchronization system, remote controlling system in wireless way or wire way
Foton as a famous international brand, Foton diesel engines can be widely applied on the field of power generation. So we can produce 20kw to 30kw Foton diesel gensets of high quality available for the global customers.
All of our Foton diesel generator sets are in accordance with ISO 9001, ISO 14001, CE manufacturing standard.
- Prime Power (PRP) : These rating are suitable for continuous operation in a variable load application in lieu of the main power network. There is no limitation to the annual hours of operation. A 10% overload is available for 1 hour in every 12 hours of operation.
- Standby Power (ESP) : These rating are suitable for the supply of emergency power in a variable load application in the event of a main power network failure for a limited number of hours per year. No overload is available.
Standard Supply Scope of FAW diesel generator set
Generally speaking, we have a standard supply scope for the buyers of diesel generator set. Please study the following items before you place your order to our company. If you have other requirements, please check our optional supply scope to find the items you are interested into buy.
- 1500 rpm or 1800rpm genuine FAW diesel engine with 40℃ radiator made in China
- 1500 rpm or 1800rpm 3 phase Elecmama brushless generator made of 100% copper lines, brushless & self-excited, Insulation Class H class, Ingress Protection IP23, AVR (automatic voltage regulator) made in China
- Smart control panel of genset, adopts genuine UK Deepsea DSE 6120, control module for genset with many protecting functions, emergency stop etc.
- Base frame fuel tank for 8 working hour capacity
- Chinese famous brand CHINT or Delixi or Tengen Moulded Case Circuit Breaker (MCCB) with CE certificate
- Chinese “Smartgen” brand battery charger, model “BAC06A”, battery isolator, batteries for electric start, copper lines for connecting batteries
- Heavy duty steel-structure base frame with strong shock absorber pad to reduce the vibration between diesel engine, generator and base frame for genset
- Industrial high-efficient silencer with exhaust elbow
- The diesel engine is fitted with an extension pipe to drain the oil
- The drain pipe and corresponding valve is fitted to the radiator for draining the water
- Two forklift pockets for each side of generator set, very convenient for transporation
- Oil drain pump by hand, simple operation, oil drain oil easily
- Module settings of low oil level alarm, at the same time install the necessary oil level sensor
- Grounding the protection of the essential measures, well done without a potential safety hazard
- Standard accessories and tool kit from the engine factory & other necesary spare parts for genset to be shipped with diesel genset for the customer’s maintenance & replacement
- Standard exporting plywood case for LCL shipment by sea
Except for the above physical items in the standard supply scope, we also supply some necessary files to our customers. Please go to check them as follows. If you lost them, we still have backup files in E-version for remedial measures.
- Manual of FAW diesel engine in English version
- Manual of AC generator (alternator) in English version
- Manual of controlling module for genset in English version
- Operation and maintenance manual of diesel generator in English version
- Wiring diagram of Fawde diesel generator set for the maintenance purposes
Optional Supply Scope of FAW diesel generator set
- The default speed governor of Fawde diesel engine is mechanical type. But the electronic type speed governor for Foton diesel engine is optional
- 50℃ radiator for Foton diesel engine is optional. Our 50℃ radiator is made of 100% copper materials, not aluminum materials. 60℃ radiator applied on Foton diesel engine is optional too, which is suitable for tropical areas and desert regions
- Soundproof canopy for silent diesel generator set is optional
- Automatic transfer switch (ATS) cabinet separated with genset is optional
- Base frame fuel tank for 12 working hour capacity is optional
- External fuel tank separated with genset is optional, Our fuel tank capacity can be 1000L, 1500L, 2000L, 3000L.
- Water jacket heater installed on the generator set for winter usage is optional
- ABB famous brand Moulded Case Circuit Breaker (MCCB) with CE certificate is optional
- Automatic refueling system is optional, mainly including “automatic fuel controller”, pre-installed automatic refueling pump and other necessary spare parts (sensor of fuel level etc.)
- Standard genset is 3 phase genset, single phase diesel generator set is optional
- single phase sockets are optional, three phase sockets are optional
- Cloud monitoring system, account, configured modem are optional
- residule current device (RCD) is optional
- intelligent control system is optional, such as synchronization system, remote controlling system in wireless way or wire way
Who is FAW Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works in China ?
Located in Wuxi, Jiangsu Province, FAW Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works (hereinafter referred to as ” FAWDE “) is an exclusively-invested enterprise subordinated to China FAW Group Corporation. Established in 1943, and after seven decades of development, the factory now covers an area of 670,000 square meters, with over 3,500 employees, total assets of RMB6.35 billion, and brand intangible assets of RMB10.229 billion. Presently, it possesses four plant areas, including two large engine bases, one engine remanufacturing base, and one modified vehicle research base, and has formed a production system with world-leading equipment, domestic leading management and industry leading quality, with an annual production capacity of 600,000 diesel engines and 15,000 modified vehicles.
FAWDE has domestic leading independent research and development capacity. Relying on the advantage of the technology center of FAW, it has formed an independent research and development mode of open cooperation, built “five independent R&D systems” including the product development process and standard system, and the product development process management system, and set up “five independent R&D technology platforms” involving energy-saving and environmental protection technology, and e-intelligence technology, which is the only enterprise that has various core technologies such as VCU, GPS, EGR, and engine braking in the diesel engine industry, as well as the first enterprise that has successfully developed the four-valve diesel engine and electronic-controlled common-rail diesel engine, and successfully developed and promoted the two-stage supercharged diesel engine in China.
FAWDE® Diesel Engines for Generator Set
Click FAW diesel engine for detailed Technical Specifications

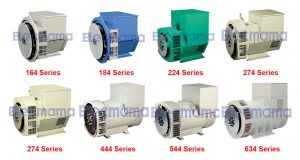

Technical specifications of Elecmama brand brushless generator
Everyone can know synchronous brushless generator is often applied on power generating equipment. Yet despite all that, choosing the brand of the generator and the type of generator continues to be a challenge for our customers. As a trustworthy supplier and professinal exporter of diesel generator set, our company can make this thing to be easier for you.
1). GENERATOR BRAND INTRODUCTION : What is Elecmama ? Elecmama is our own brand, registered in Chinese mainland. Elec = Electrical, mama = mother, So Elecmama = Electrical mother. The mother of electricity can be compared to generator set. We have already chose Elecmama as our brand name and we will unremitting diligently make enterprise image and perfect quality of service, smooth lead brand service.
2). HOW TO CHOOSE GENERATOR TYPE : synchronous generator includes brushless generator and generator with carbon brush. If generator adopts carbon brush, you have to replace carbon brush after running for some period of time, very inconvenient. So, we only supply and export synchronous brushless generator without carbon brush.
3). HOW TO CHOOSE GENERATOR MODEL : Firstly, you have to judge if you generator is single phase generator or 3 phase generator. Secondly, you need to know the prime power output of your generator is how many kw numbers? Thirdly, you must have a look at the voltage of your generator and frequency of your generator. Our default is below.
- 50HZ for 400/230V, 3 phase synchronous brushless generator, power factor = 0.8 lagging
- 60HZ for 440/254V, 3 phase synchronous brushless generator, power factor = 0.8 lagging
- 50Hz for 220~240V, single phase synchronous brushless generator, power factor = 1 lagging
- 60Hz for 220~240V, single phase synchronous brushless generator, power factor = 1 lagging
Generator Model | 3 Phase 50Hz 400/230V PF=0.8 | 3 Phase 60Hz 440/254V PF=0.8 | Generator Packing Information | ||||||||
Prime Power 40℃ | Standby Power 40℃ | Prime Power 40℃ | Standby Power 40℃ | Net Weight | Gross Weight | Length x Width x Height | |||||
KW | KVA | KW | KVA | KW | KVA | KW | KVA | ||||
Elecmama-164A | 6.5 | 8.1 | 7.2 | 8.9 | 8.2 | 10.3 | 9.0 | 11.3 | 85 kgs | 95 kgs | 53 x 55 x 59 cm |
Elecmama-164B | 8.8 | 11.0 | 9.7 | 12.1 | 11.0 | 13.8 | 12.1 | 15.1 | 90 kgs | 102 kgs | 53 x 55 x 59 cm |
Elecmama-164C | 10.8 | 13.5 | 11.9 | 14.9 | 13.5 | 16.9 | 14.9 | 18.6 | 96 kgs | 110 kgs | 53 x 55 x 59 cm |
Elecmama-164D | 12.8 | 16.0 | 14.1 | 17.6 | 16.0 | 20.0 | 17.6 | 22.0 | 99 kgs | 116 kgs | 53 x 55 x 59 cm |
Elecmama-184E | 18.0 | 22.5 | 19.8 | 24.8 | 23.0 | 28.8 | 25.3 | 31.6 | 120 kgs | 133 kgs | 58 x 55 x 59 cm |
Elecmama-184F | 22.0 | 27.5 | 24.2 | 30.3 | 27.5 | 34.4 | 30.3 | 37.8 | 150 kgs | 156 kgs | 67 x 55 x 59 cm |
Elecmama-184G | 25.0 | 31.3 | 27.5 | 34.4 | 30.0 | 37.5 | 33.0 | 41.3 | 156 kgs | 172 kgs | 67 x 55 x 59 cm |
Elecmama-184H | 30.0 | 37.5 | 33.0 | 41.3 | 37.5 | 46.9 | 41.3 | 51.6 | 216 kgs | 226 kgs | 74 x 55 x 59 cm |
Elecmama-184J | 32.0 | 40.0 | 35.2 | 44.0 | 40.0 | 50.0 | 44.0 | 55.0 | 226 kgs | 236 kgs | 74 x 55 x 59 cm |
Elecmama-224C | 34.0 | 42.5 | 37.4 | 46.8 | 42.0 | 52.5 | 46.2 | 57.8 | 235 kgs | 255 kgs | 82 x 55 x 81 cm |
Elecmama-224D | 40.0 | 50.0 | 44.0 | 55.0 | 50.0 | 62.5 | 55.0 | 68.8 | 250 kgs | 270 kgs | 82 x 55 x 81 cm |
Elecmama-224E | 48.0 | 60.0 | 52.8 | 66.0 | 56.0 | 70.0 | 61.6 | 77.0 | 270 kgs | 290 kgs | 91 x 55 x 81 cm |
Elecmama-224F | 58.0 | 72.5 | 63.8 | 79.8 | 70.0 | 87.5 | 77.0 | 96.3 | 310 kgs | 330 kgs | 91 x 55 x 81 cm |
Elecmama-224G | 68.0 | 85.0 | 74.8 | 93.5 | 78.0 | 97.5 | 85.8 | 107.3 | 350 kgs | 370 kgs | 96 x 55 x 81 cm |
Elecmama-274C | 80.0 | 100.0 | 88.0 | 110.0 | 94.0 | 117.5 | 103.4 | 129.3 | 385 kgs | 415 kgs | 91 x 65 x 87 cm |
Elecmama-274D | 96.0 | 120.0 | 105.6 | 132.0 | 110.0 | 137.5 | 121.0 | 151.3 | 405 kgs | 435 kgs | 91 x 65 x 87 cm |
Elecmama-274E | 112.0 | 140.0 | 123.2 | 154.0 | 134.0 | 167.5 | 147.4 | 184.3 | 455 kgs | 485 kgs | 100 x 65 x 87 cm |
Elecmama-274F | 128.0 | 160.0 | 140.8 | 176.0 | 152.0 | 190.0 | 167.2 | 209.0 | 500 kgs | 530 kgs | 100 x 65 x 87 cm |
Elecmama-274G | 145.6 | 182.0 | 160.2 | 200.2 | 174.8 | 218.5 | 192.3 | 240.4 | 550 kgs | 580 kgs | 105 x 65 x 87 cm |
Elecmama-274H | 160.0 | 200.0 | 176.0 | 220.0 | 196.0 | 245.0 | 215.6 | 269.5 | 600 kgs | 630 kgs | 110 x 65 x 87 cm |
Elecmama-274J | 184.0 | 230.0 | 202.4 | 253.0 | 224.8 | 281.0 | 247.3 | 309.1 | 720 kgs | 760 kgs | 115 x 70 x 90 cm |
Elecmama-274K | 200.0 | 250.0 | 220.0 | 275.0 | 239.2 | 299.0 | 263.1 | 328.9 | 720 kgs | 760 kgs | 115 x 70 x 90 cm |
Elecmama-444C | 200.0 | 250.0 | 220.0 | 275.0 | 240.0 | 300.0 | 264.0 | 330.0 | 850.5 kgs | 910 kgs | 130 x 77 x 99 cm |
Elecmama-444D | 240.0 | 300.0 | 264.0 | 330.0 | 288.0 | 360.0 | 316.8 | 396.0 | 915.5 kgs | 975 kgs | 130 x 77 x 99 cm |
Elecmama-444ES | 260.0 | 325.0 | 286.0 | 357.5 | 315.2 | 394.0 | 346.7 | 433.4 | 995.5 kgs | 1055 kgs | 130 x 77 x 99 cm |
Elecmama-444E | 280.0 | 350.0 | 308.0 | 385.0 | 336.0 | 420.0 | 369.6 | 462.0 | 995.5 kgs | 1055 kgs | 130 x 77 x 99 cm |
Elecmama-444FS | 304.0 | 380.0 | 334.4 | 418.0 | 365.0 | 456.3 | 401.5 | 501.9 | 1123.5 kgs | 1183 kgs | 139 x 77 x 99 cm |
Elecmama-444F | 320.0 | 400.0 | 352.0 | 440.0 | 384.0 | 480.0 | 422.4 | 528.0 | 1123.5 kgs | 1183 kgs | 139 x 77 x 99 cm |
Elecmama-544C | 364.0 | 455.0 | 400.4 | 500.5 | 440.0 | 550.0 | 484.0 | 605.0 | 1250 kgs | 1350 kgs | 146 x 84 x 100 cm |
Elecmama-544D | 400.0 | 500.0 | 440.0 | 550.0 | 475.2 | 594.0 | 522.7 | 653.4 | 1358 kgs | 1450 kgs | 146 x 84 x 100 cm |
Elecmama-544E | 480.0 | 600.0 | 528.0 | 660.0 | 570.4 | 713.0 | 627.4 | 784.3 | 1498 kgs | 1598 kgs | 146 x 84 x 100 cm |
Elecmama-544FS | 500.0 | 625.0 | 550.0 | 687.5 | 580.0 | 725.0 | 638.0 | 797.5 | 1653 kgs | 1753 kgs | 154 x 84 x 100 cm |
Elecmama-544F | 536.0 | 670.0 | 589.6 | 737.0 | 620.0 | 775.0 | 682.0 | 852.5 | 1653 kgs | 1753 kgs | 154 x 84 x 100 cm |
Elecmama-634B | 600.0 | 750.0 | 660.0 | 825.0 | 684.0 | 855.0 | 752.4 | 940.5 | 1950 kgs | 2020 kgs | 168 x 95 x 130 cm |
Elecmama-634C | 640.0 | 800.0 | 704.0 | 880.0 | 733.0 | 916.3 | 806.3 | 1007.9 | 1970 kgs | 2040 kgs | 168 x 95 x 130 cm |
Elecmama-634D | 728.0 | 910.0 | 800.8 | 1001.0 | 834.0 | 1042.5 | 917.4 | 1146.8 | 2030 kgs | 2100 kgs | 168 x 95 x 130 cm |
Elecmama-634E | 800.0 | 1000.0 | 880.0 | 1100.0 | 916.0 | 1145.0 | 1007.6 | 1259.5 | 2190 kgs | 2260 kgs | 168 x 95 x 130 cm |
Elecmama-634F | 904.0 | 1130.0 | 994.4 | 1243.0 | 1019.0 | 1273.8 | 1120.9 | 1401.1 | 2420 kgs | 2490 kgs | 168 x 95 x 130 cm |
Elecmama-634G | 1000.0 | 1250.0 | 1100.0 | 1375.0 | 1109.0 | 1386.3 | 1219.9 | 1524.9 | 2750 kgs | 2820 kgs | 178 x 95 x 130 cm |
Generator Model | Single Phase 50Hz 220~240V PF=1 | Single Phase 60Hz 220~240V PF=1 | Generator Packing Information | ||||||||
Prime Power 40℃ | Standby Power 40℃ | Prime Power 40℃ | Standby Power 40℃ | Net Weight | Gross Weight | Length x Width x Height | |||||
KW | KVA | KW | KVA | KW | KVA | KW | KVA | ||||
Elecmama-164A | 4.3 | 5.4 | 4.7 | 5.9 | 5.1 | 6.4 | 5.6 | 7.0 | 85 kgs | 95 kgs | 53 x 55 x 59 cm |
Elecmama-164B | 5.9 | 7.4 | 6.5 | 8.1 | 7.0 | 8.8 | 7.7 | 9.6 | 90 kgs | 102 kgs | 53 x 55 x 59 cm |
Elecmama-164C | 7.2 | 9.0 | 7.9 | 9.9 | 8.6 | 10.8 | 9.5 | 11.8 | 96 kgs | 110 kgs | 53 x 55 x 59 cm |
Elecmama-164D | 8.6 | 10.8 | 9.5 | 11.8 | 10.8 | 13.5 | 11.9 | 14.9 | 99 kgs | 116 kgs | 53 x 55 x 59 cm |
Elecmama-184E | 12.0 | 15.0 | 13.2 | 16.5 | 14.7 | 18.4 | 16.2 | 20.2 | 120 kgs | 133 kgs | 58 x 55 x 59 cm |
Elecmama-184F | 14.8 | 18.5 | 16.3 | 20.4 | 17.5 | 21.9 | 19.3 | 24.1 | 150 kgs | 156 kgs | 67 x 55 x 59 cm |
Elecmama-184G | 16.8 | 21.0 | 18.5 | 23.1 | 20.0 | 25.0 | 22.0 | 27.5 | 156 kgs | 172 kgs | 67 x 55 x 59 cm |
Elecmama-184H | 20.0 | 25.0 | 22.0 | 27.5 | 25.0 | 31.3 | 27.5 | 34.4 | 216 kgs | 226 kgs | 74 x 55 x 59 cm |
Elecmama-184J | 22.4 | 28.0 | 24.6 | 30.8 | 28.0 | 35.0 | 30.8 | 38.5 | 226 kgs | 236 kgs | 74 x 55 x 59 cm |
~~ Reference Picture for Each Series Elecmama Brand Generators ~~
~~ Guarantee Clause for Elecmama Brand Generators ~~
Our generators have 7 series in total, including Elecmama-164 series, Elecmama-184 series, Elecmama-224 series, Elecmama-274 series, Elecmama-444 series, Elecmama-544 series, Elecmama-634 series. These generators are made of 100% high-class copper lines without any aluminium materials, which will be produced after we receive the customer’s payment. Generally speaking, our production time for Elecmama brushless generators are 20 days. During these 20 days, our factory strictly implements standard production & strict commissioning to make sure of final quality assurance.
Our generators are produced in strict accordance with ISO9001 quality management system requirement, in line with International standard IEC34-1 and domestic standard GB755 etc. So we can be fully confident of a long warranty time for our dear customers, 12 months or 1000 running hours (whichever comes firstly), calculated by B/L date. In gurantee period, we will be fully responsible for quality problem, and offer free service. In the case of faulty products, we shall eliminate the errors in 24 hour, and propose solution. Even if the damage is caused by customer’s misoperation, beyond our guarantee range, we still will provide necessary assistances in order to solve the problem for our customer.
~~ Spare parts for Elecmama Brand Generators ~~
As we all know, the Elecmama brushless generator has few breakdowns within the warranty time. Even if broke down after the warranty time, most situation is the malfunction from AVR (automatic voltage regulator). Just buy a new AVR to replace the old one. In this case, if you finds that your generator is still out of work, we often feel it is time for you to buy a new generator at this very moment.
Spare parts of FAW diesel generator
After you buy diesel generator from our company, sooner or later you will replace spare parts for genset maintenance someday in the future. Here we can tell you main spare parts in advance. The spare parts of our FAW diesel generators mainly include spare parts of Fawde diesel engine, spare parts of generator, spare parts of Fawde diesel genset.
1). spare parts of FAW diesel engine
air filter, fuel filter, oil filter, water pump, engine alternator, electric starter motor for engine, V-belt for water tank (radiator), cylinder head gasket, engine overhaul gaskets kit, lube oil pump, injector, tube nozzle, injection pump, piston, piston rings, cylinder lines, connecting rod, connecting rod bearings, crankshaft, crankshaft main bearings, main crankshaft front seal, main crankshaft rear seal, oil pressure sensor, camshaft etc.
2). spare parts of generator
automatic voltage regulator = AVR, Automatic Voltage Regulator is a quick-wear part. During the warrany time, AVR won’t break down. After warranty, if AVR is out of work. Just buy a new AVR to replace the old AVR. If the customer find the other part of generator, such as main stator bar assy, main rotor assy, exciter, bearing kit, main terminal board etc. these parts inside of generator body become failure. At this time, this generator is not worthy of being repaired, buy a new generator to replace the old generator. Generally speaking, the main problem of generator is AVR. We don’t suggest the customer to dismantle the whole generator. For the AVR, it is easy to be found. What the customer need to do is to open the lid of generator and then take the old AVR out, install new AVR over there.
3). spare parts of FAW diesel genset
automatic transfer switch, battery charger, battery isolator, battery for genset, controlling module of genset, engine oil drain pump, water jacket heater, single phase sockets, three phase sockets, external fuel tank, automatic refueling pump, fuel level sensors, oil drain pipe, oil outlet valve, shock absorber pad, rainproof exhaust cover (rainhat), water tank lid, safety fuse, safety fuse basement, starting relays, emergency stop button, power lock with 2 keys, stainless steel locks and stainless hinges, yellow color plastic spraying powder, residule current device (RCD), current tnasformers, air breaker etc.
At this very moment, if you decide to buy FAW generator will you have a lot of questions in minds ? Don’t worry about this. Just send your enquiry to [email protected] or directly add Whatsapp +86 189-3624-2835. You can get all of answers. In your enquiry, we need the following information to prepare an exact quotation for you.
- 50hz Foton diesel genset or 60hz Foton diesel genset
- your Foton diesel genset is 3 phase genset or single phase genset ?
- What is voltage of your Foton diesel generating set ?
- If our default brushless generator is not acceptable, do you need Stamford generator or other brand generator ?
- What is the rated power (KW) of genset or the rated power (KVA) of genset ⇒ 1kw=1.25kva
- diesel genset model, for example “YCM20FO”, if you can confirm our genset model, pls tell us the genset model.
- purchasing quantity, 1 set or more sets
- open type, silent type, trailer type or other type diesel generator set
- Do you need ATS cabinet for your diesel genset ?
- other requirements you need to add
You see, importing a FAW diesel generator from China is not an easy job involved into many things and details. We feel that the professional thing can be well done by professional company. The original will of our company is to sacrifice all of our industrial experiece for electric power demand from global customers. In fact, all the time our work is always to help the buyer reduce the procurement risk and procurement cost. We are willing to do more during the mutual cooperation between our customers and us. Only our customer’s workload goes down, they will have a more relaxed mood to enjoy life with a doubt. This is the goal of our hard work. — Yangzhou Yongcai Machinery Co., ltd.
