Yangdong diesel generators
three phase Yangdong diesel generators for power generation
Application : house use, commercial use, emergency use
Genset frequency : 50HZ and 60HZ
Phase number : 3 Phase
Default voltage : 400/230V for 50HZ, 440/254V for 60HZ, other voltage can be available for our customers all over the world
Power output : 8kw to 70kw
Power factor : 0.8 lagging
Country of origina : China
Quality certificate : ISO9001 : 2008, ISO14001 & CE
Guarantee period : 12 months started from on-board day of B/L
Production time : 25-30 days after we receive customer’s payment
Minimum Order Quantity (MOQ) : 1 set
- Description
Yangdong diesel generators
Yangzhou Yongcai Machinery Co., Ltd. professionally exports & distributes Yangdong diesel generator sets, Yangdong diesel engines, generators (alternators), spare parts of Yangdong diesel gensets, spare parts of Yangdong diesel engines, spare parts of generators (alternators) for our dear customers all over the world. Our Yangdong diesel gensets are often coupled to our brand “Elecmama” brushless synchronous generators. Such a combination emphasizes high quality yet value for money. If you need the higher quality generators, such as Stamford, Marathon, Leroy Somer, Mecc Alte, etc. our company still can supply them for you. No misgivings : We have CE certificate as a proof of quality with 12 months warranty period.

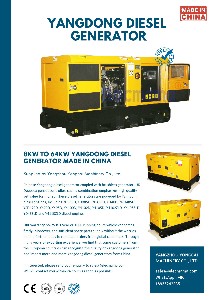

How to buy a Yangdong diesel generator with CE certificate from China? All answers are here. Please don’t miss it. Yangdong diesel generator set is a good power generating equipment, worth you have. Strong and stable power output, you know.

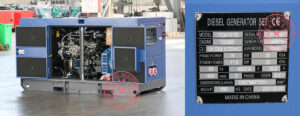

16kw Yangdong diesel generator powered by YSD490D engine
YANGDONG diesel generator
~~ Main specifications about Yangdong diesel generating sets ~~
- Yangdong diesel engine’s frenquency:50HZ or 60HZ
- Yangdong diesel engine’s speed:1500 rpm or 1800 rpm
- phase number of diesel genset:3 phase or single phase
- 3 phase voltage of 50HZ diesel genset: 380/220V, 400/230V, 415/240V, 440/254V available for 50hz, 400/230V is our default voltage of 3 phase genset. 50HZ other voltage is available for the customers.
- 3 phase voltage of 60HZ diesel genset: 416/240V, 440/254V, 460/266V, 480/277V available for 60hz, 416/240V is our default voltage of 3 phase genset. 60HZ other voltage is available for the customers.
- power factor: 0.8 lagging for 3 phase genset, 1 lagging for single phase genset
- starting method: electric start by battery
- cooling way: water-cooled, not air-cooled
- chamber type of Yangdong diesel engine: direct injection
~~ 50HZ catalogue of Yangdong diesel generating sets ~~
Genset Model | 50HZ Diesel Generator | 1500rpm Water-cooled Yongdong Diesel Engine Made In China | 50HZ 400/230V Generator | ||||||
Standby Power | Prime Power | Engine Brand | Engine Model | Rated Output (KW) | Brushless Generator | ||||
KVA | KW | KVA | KW | Generator Model | Rated Power | ||||
YCM8YD-50 | 11 | 9 | 10 | 8 | Yangdong | YD380D | 10 | Elecmama-164B | 8.8kw |
YCM9YD-50 | 12 | 10 | 11 | 9 | Yangdong | YD385D | 11 | Elecmama-164C | 10.8kw |
YCM10YD-50 | 14 | 11 | 13 | 10 | Yangdong | YD480D | 14 | Elecmama-164C | 10.8kw |
YCM12YD-50 | 17 | 13 | 15 | 12 | Yangdong | YND485D | 17 | Elecmama-164D | 12.8kw |
YCM16YD-50 | 22 | 18 | 20 | 16 | Yangdong | YSD490D | 21 | Elecmama-184E | 18kw |
YCM20YD-50 | 28 | 22 | 25 | 20 | Yangdong | Y490D | 24 | Elecmama-184F | 22kw |
YCM22YD-50 | 30 | 24 | 28 | 22 | Yangdong | Y495D | 27 | Elecmama-184F | 22kw |
YCM24YD-50 | 33 | 26 | 30 | 24 | Yangdong | Y4100D | 30 | Elecmama-184G | 25kw |
YCM30YD-50 | 41 | 33 | 38 | 30 | Yangdong | Y4102D | 33 | Elecmama-184H | 30kw |
YCM32YD-50 | 44 | 35 | 40 | 32 | Yangdong | Y4105D | 38 | Elecmama-184J | 32kw |
YCM40YD-50 | 55 | 44 | 50 | 40 | Yangdong | Y4102ZLD | 48 | Elecmama-224D | 40kw |
YCM50YD-50 | 69 | 55 | 63 | 50 | Yangdong | Y4105ZLD | 55 | Elecmama-224F | 58kw |
YCM56YD-50 | 77 | 62 | 70 | 56 | Yangdong | YD4EZLD | 63 | Elecmama-224F | 58kw |
YCM64YD-50 | 88 | 70 | 80 | 64 | Yangdong | Y4110ZLD | 80 | Elecmama-224G | 68kw |
~~ 60HZ catalogue of Yangdong diesel generating sets ~~
Genset Model | 60HZ Diesel Generator | 60HZ 1800rpm Water-cooled Yongdong Diesel Engine Made In China | 60HZ 440/254V Generator | ||||||
Standby Power | Prime Power | Engine Brand | Engine Model | Rated Output (KW) | Brushless Generator | ||||
KVA | KW | KVA | KW | Generator Model | Rated Power | ||||
YCM10YD-60 | 14 | 11 | 13 | 10 | Yangdong | YD380D | 12 | Elecmama-164B | 11kw |
YCM11YD-60 | 15 | 12 | 14 | 11 | Yangdong | YD385D | 13 | Elecmama-164B | 11kw |
YCM12YD-60 | 17 | 13 | 15 | 12 | Yangdong | YD480D | 16 | Elecmama-164C | 13.5kw |
YCM16YD-60 | 22 | 18 | 20 | 16 | Yangdong | YND485D | 20 | Elecmama-164D | 16kw |
YCM20YD-60 | 28 | 22 | 25 | 20 | Yangdong | YSD490D | 25 | Elecmama-184E | 23kw |
YCM23YD-60 | 32 | 25 | 29 | 23 | Yangdong | Y490D | 28 | Elecmama-184E | 23kw |
YCM24YD-60 | 33 | 26 | 30 | 24 | Yangdong | Y495D | 30 | Elecmama-184F | 27.5kw |
YCM30YD-60 | 41 | 33 | 38 | 30 | Yangdong | Y4100D | 33 | Elecmama-184G | 30kw |
YCM32YD-60 | 44 | 35 | 40 | 32 | Yangdong | Y4102D | 36 | Elecmama-184H | 37.5kw |
YCM38YD-60 | 52 | 42 | 48 | 38 | Yangdong | Y4105D | 45 | Elecmama-184H | 37.5kw |
YCM40YD-60 | 55 | 44 | 50 | 40 | Yangdong | Y4102ZLD | 53 | Elecmama-184J | 40kw |
YCM50YD-60 | 69 | 55 | 63 | 50 | Yangdong | Y4105ZLD | 60 | Elecmama-224D | 50kw |
YCM60YD-60 | 83 | 66 | 75 | 60 | Yangdong | YD4EZLD | 70 | Elecmama-224F | 70kw |
YCM70YD-60 | 96 | 77 | 88 | 70 | Yangdong | Y4110ZLD | 85 | Elecmama-224F | 70kw |
► YANGDONG diesel engine
~~ Main features of Yangdong diesel engine for genset ~~
- COMFORTABLE — Lower vibration and noise
- RELIABILITY — The cooling system of the engine is improved to reduce heat load.The series engines have passed through 720 hours accelerated load test and 2000 hours durabilitty test.Finished cylinder liner is dismountable and its maintenance is convenient.
- ENVIRONMENTAL PROTECTION — The emission requirements o fnon-road diesel engines have been meet, and some products haveachieved the U.S.EPA, Europe E-mark, India CPCB and ohter emission standards.
- LOW FUEL CONSUMPTION — Low specific fuel consumption, specific oil consumption and steady state speed regulation. The oil and fuel consumption ratio is less than 0.2% in bench test, and which has reached the advanced level in the small engine industry.
- TECHNOLOGY — Joint design is done by China YTO group corp and worldwide famous R&D centers. The advanced diesel engine technologies at home and aboard are integrated.Based on CAD / UG 3D technologies and CAE analysis by using all new stiffness.
~~ Main technical parameters of Chinese Yangdong diesel engine for power generation ~~
50HZ 1500rpm & 60HZ 1800rpm Water-cooled Yongdong Diesel Engine Made In China | ||||||||
Engine Brand | Engine Model | Rated Output (KW) | Cylinder No. | Bore | Stroke | Diesel Fuel Consumption At Full Load | Displacement (L) | Speed Governor |
mm | ||||||||
Yangdong | YD380D | 10kw/1500rpm 12kw/1800rpm | 3 | 80 | 90 | 260 g/kw.h | 1.357 | Mechanical |
Yangdong | YD385D | 11kw/1500rpm 13kw/1800rpm | 3 | 85 | 90 | 255 g/kw.h | 1.532 | Mechanical |
Yangdong | YD480D | 14kw/1500rpm 16kw/1800rpm | 4 | 80 | 90 | 250.5 g/kw.h | 1.809 | Mechanical |
Yangdong | YND485D | 17kw/1500rpm 20kw/1800rpm | 4 | 85 | 95 | 247 g/kw.h | 2.156 | Mechanical |
Yangdong | YSD490D | 21kw/1500rpm 25kw/1800rpm | 4 | 90 | 100 | 247.5 g/kw.h | 2.54 | Mechanical |
Yangdong | Y490D | 24kw/1500rpm 28kw/1800rpm | 4 | 90 | 105 | 243 g/kw.h | 2.67 | Mechanical |
Yangdong | Y495D | 27kw/1500rpm 30kw/1800rpm | 4 | 95 | 105 | 240 g/kw.h | 2.977 | Mechanical |
Yangdong | Y4100D | 30kw/1500rpm 33kw/1800rpm | 4 | 100 | 118 | 237 g/kw.h | 3.707 | Mechanical |
Yangdong | Y4102D | 33kw/1500rpm 36kw/1800rpm | 4 | 102 | 118 | 235 g/kw.h | 3.857 | Mechanical |
Yangdong | Y4105D | 38kw/1500rpm 45kw/1800rpm | 4 | 105 | 118 | 235 g/kw.h | 4.087 | Mechanical |
Yangdong | Y4102ZLD | 48kw/1500rpm 53kw/1800rpm | 4 | 102 | 118 | 225 g/kw.h | 3.857 | Mechanical |
Yangdong | Y4105ZLD | 55kw/1500rpm 60kw/1800rpm | 4 | 105 | 118 | 220 g/kw.h | 4.087 | Electronic |
Yangdong | YD4EZLD | 63kw/1500rpm 70kw/1800rpm | 4 | 105 | 118 | 220 g/kw.h | 4.087 | Electronic |
Yangdong | Y4110ZLD | 80kw/1500rpm 85kw/1800rpm | 4 | 110 | 118 | 220 g/kw.h | 4.484 | Electronic |
► Brushless generator
~~ Main technical parameters of our Elecmama brand brushless generator ~~
1500 rpm 3 phase brushless generator made of 100% copper lines, brushless & self-excited, Insulation Class H class, Ingress Protection IP23, AVR (automatic voltage regulator)
~~ Guarantee Clause for Elecmama Brand Generators ~~
Our generators are produced in strict accordance with ISO9001 quality management system requirement, in line with International standard IEC34-1 and domestic standard GB755 etc. So we can be fully confident of a long warranty time for our dear customers, 12 months or 1000 running hours (whichever comes firstly), calculated by B/L date. In gurantee period, we will be fully responsible for quality problem, and offer free service. In the case of faulty products, we shall eliminate the errors in 24 hour, and propose solution. Even if the damage is caused by customer’s misoperation, beyond our guarantee range, we still will provide necessary assistances in order to solve the problems for our customer.
~~ Spare parts for Elecmama Brand Generators ~~
As we all know, the brushless generator has few breakdowns within the warranty time. Even if broke down after the warranty time, most situation is the malfunction from AVR (automatic voltage regulator). Just buy a new AVR to replace the old one. In this case, if you finds that your generator is still out of work, we often feel it is time for you to buy a new generator at this very moment.

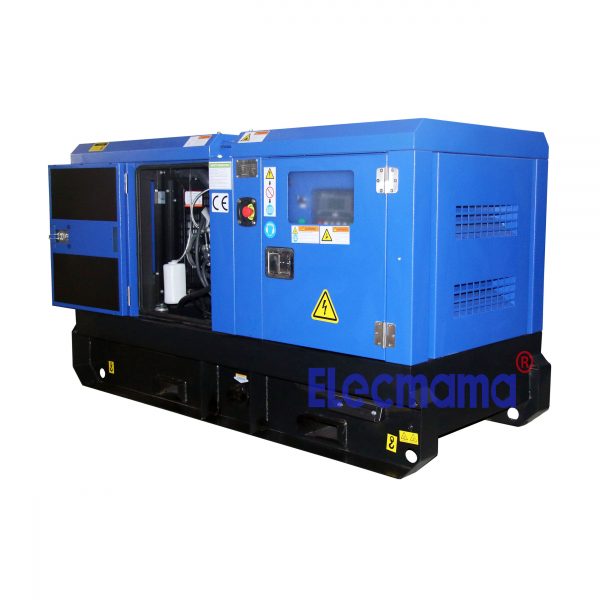

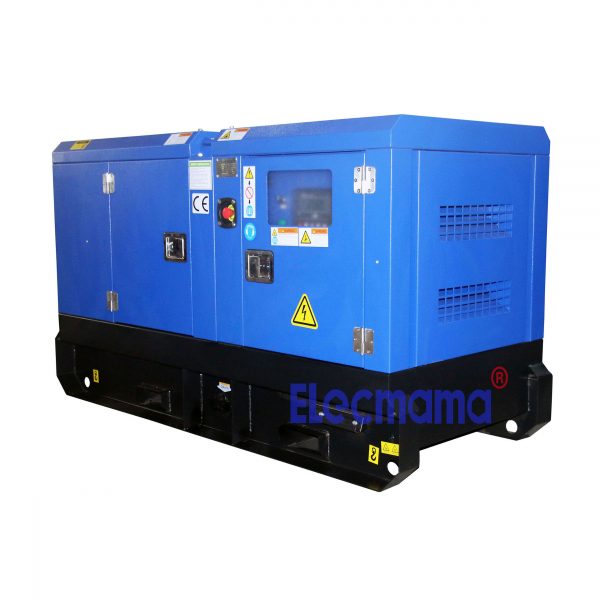

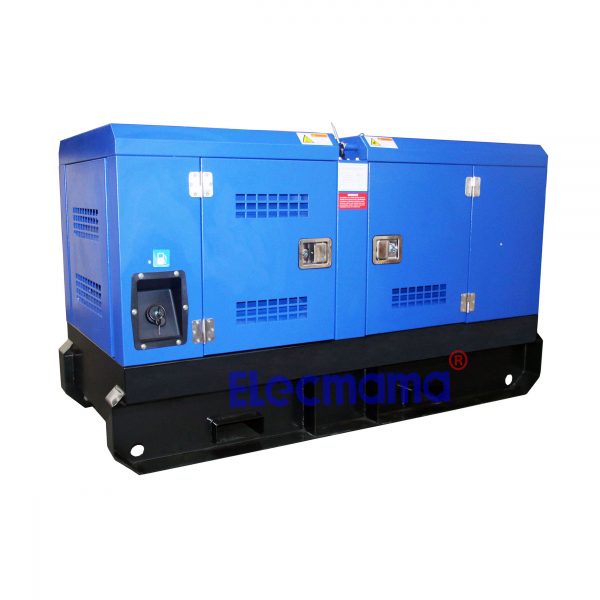

► Silent type YANGDONG diesel generator
Silent type diesel generators, we mainly have 3 kinds of soundproof canopies for the customer’s choice.
Our Denyo silent generator is a soundproof generator with Denyo design. Power range is from 8kw to 500kw. Once the power output of diesel generator is more than 500kw, we often use container as acoustic enclosure.
A standard generator can operate at noise levels of 100 decibels or more. After our professional processing of sound insulation, most of popular industrial generators will generate only 60-85 dBA noise level at full rated load, which can be considered to be about as loud as normal conversational speech.
The table below shows how common noises compare to each other with respect to dBA levels. Keep in mind that the distance away from the sound source directly affects how loud it sounds.
Sound Level (dBA) | Typical Source | Subjective Evaluation |
---|---|---|
140 | Shot gun fire (gunner’s ears) | Extremely noisy to intolerable |
130 | Threshold of pain | |
120 | Jet take-off at 300 ft | |
110 | Night club dance floor | |
100 | Loud car horn at 9 ft | Very noisy |
90 | Semi truck at 30 ft | |
80 | Side walk of busy street | Loud |
70 | Car interior while moving | |
60 | Normal conversation | Moderate |
50 | Office background noise | |
30 | Inside bedroom at night | Quiet |
10 | Pin drop | Almost silent |
Spare parts of YANGDONG diesel generator
After you buy diesel generator from our company, sooner or later you will replace spare parts for genset maintenance someday in the future. Here we can tell you main spare parts in advance. The spare parts of our Yangdong diesel generators mainly include spare parts of Yangdong diesel engine, spare parts of generator, spare parts of Yangdong diesel genset.
1). spare parts of Yangdong diesel engine
air filter, fuel filter, oil filter, water pump, engine alternator, electric starter motor for engine, V-belt for water tank (radiator), cylinder head gasket, engine overhaul gaskets kit, lube oil pump, injector, tube nozzle, injection pump, piston, piston rings, cylinder lines, connecting rod, connecting rod bearings, crankshaft, crankshaft main bearings, main crankshaft front seal, main crankshaft rear seal, oil pressure sensor, camshaft etc.
2). spare parts of generator
automatic voltage regulator = AVR, Automatic Voltage Regulator is a quick-wear part. During the warrany time, AVR won’t break down. After warranty, if AVR is out of work. Just buy a new AVR to replace the old AVR. If the customer find the other part of generator, such as main stator bar assy, main rotor assy, exciter, bearing kit, main terminal board etc. these parts inside of generator body become failure. At this time, this generator is not worthy of being repaired, buy a new generator to replace the old generator. Generally speaking, the main problem of generator is AVR. We don’t suggest the customer to dismantle the whole generator. For the AVR, it is easy to be found. What the customer need to do is to open the lid of generator and then take the old AVR out, install new AVR over there.
3). spare parts of Yangdong diesel genset
automatic transfer switch, battery charger, battery isolator, battery for genset, controlling module of genset, engine oil drain pump, water jacket heater, single phase sockets, three phase sockets, external fuel tank, automatic refueling pump, fuel level sensors, oil drain pipe, oil outlet valve, shock absorber pad, rainproof exhaust cover (rainhat), water tank lid, safety fuse, safety fuse basement, starting relays, emergency stop button, power lock with 2 keys, stainless steel locks and stainless hinges, yellow color plastic spraying powder, residule current device (RCD), current tnasformers, air breaker etc.
► How to buy a Yangdong diesel generator from China ?
If you are intested into buy a Yangdong diesel generator set from China, please send your enquiry to us. In your enquiry, we need the following information to prepare an exact quotation for you.
- 50hz Yangdong diesel genset or 60hz Yangdong diesel genset
- your Yangdong diesel genset is 3 phase genset or single phase genset ?
- what is voltage of your Yangdong diesel generating set
- if our default brushless generator is not acceptable, do you need Stamford or other brand generator ?
- what is the rated power (KW) of genset or the rated power (KVA) of genset ⇒ 1kw=1.25kva
- diesel genset model, for example “YCM8YD-50”, if you can confirm our genset model, pls tell us genset model.
- purchasing quantity, 1 set or more sets
- open type, silent type, trailer type or other type diesel generator set
- Do you need ATS cabinet for your diesel genset ?
- other requirements you need to add
